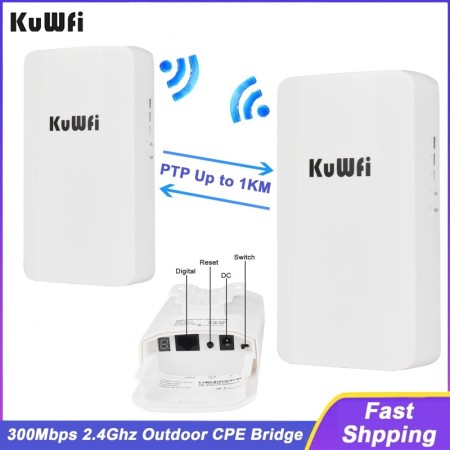

KuWFi 2,4 Ghz 300Mbps CPE puente extensor de señal WiFi inalámbrico para exteriores PTP hasta 1KM 24V POE AP modo repetidor para

Tips:

1.If you want to extend the wifi distance, you must buy two Bridges. Just buying a bridge will not serve its true purpose.

2.Please select the plug type carefully before purchasing.

FAQ:

Q: I wan to login WEB UI page for IP Address,but i can not open it.

A:If you need to manage the bridge, you must use a computer to connect to the bridge.
Then set a static IP address for the network to access the WEB UI page.
you can set static ip address :169.254.254.20
Subnet mask： 255.255.255.0
Open a browser and input the web address：169.254.254.254. Log in to the WEB UI of the bridge.
(After the configuration is complete, restore the original status.Otherwise, the Internet access fails.)

Product Description

1.High speed ,up to 300mbps data rate power and point to point 500-1000m long-range coverage

2.KuWFi outdoor AP single-frequency outdoor CPE works in the 2.4GHz frequency band, supports 300Mbps AP, reepater functions, can access more wireless clients.

3.KuWFi outdoor AP uses dustproof and waterproof shell, all-weather sunscreen, waterproof, dustproof seal design can be used in various outdoor Working in the environment.

4.KuWFi outdoor AP also supports PoE remote 100M network cable power supply and DC power supply mode, convenient management, --

5.support digital display pairing information for remote pairing
KuWFi outdoor AP two unit work at the same time and LED show same digital number ,mean have paird.

Product Detail

Chipset: MTK 7628KN 300Mbps

Flash: 1MB

RAM: 8MB

Transmission Rate: 2.4GHz,wifi rate up to 300 Mbps

Modulation mode: OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK

Output Power:

802.11n: @MCS7:12±2DB, @MCS0:14±2DB

802.11g: @54M:13±2DB, @6M:15±2DB

802.11b: @11M:15±2DB, @1M:17±2DB

Receiving sensitivity:

802.11n: -70dbm@MCS7, -88dbm@MCS0

802.11g: -72dbm@54Mbps, -88dbm@6Mbps

802.11b: -85dbm@11Mbps, -94dbm@1Mbps

EVM:

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

Frequency offset ±20ppm

Interface: 1x 10/100M adaptive WAN port (POE 24V 0.5A)

Support Power supply:POE 24V 0.5A or DC 12V-24V/1A(Package Not Include)

Support Mode: AP mode and reepater mode

Reset button: Long press to reset, short press to debug digital display plus or minus

Status Indicator: POWER LED,WAN LED,LAN LED,LINK LED

1x/2x CPE Bridge

1x/2x POE Power Supply

1x/2x Network Cable

1x Manual

Applications Case

I was looking for a wireless bridge to bring internet connection to my backhouse about 500 feet from the main house, which is too far for wifi range and too long to run the ethernet cable. I connected the adapter to the bridge using the ethernet cable on one end and the other end of the ethernet cable to the main house internet hub. I connected the other adapter to the other bridge using another ethernet cable for the backhouse. I like that the bridges can go very far, up to almost a mile without obstruction, which is ample for my need. Will look to see if the bridge can be connected wirelessly to the hub in the main house.
