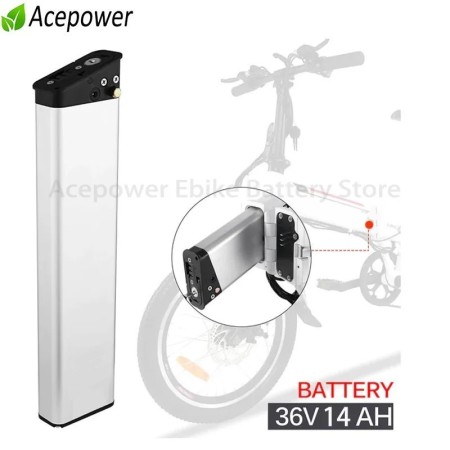

Para ANCHEER AM1908 AM 001908 ADO A16 36V 8Ah Batería de bicicleta eléctrica plegable DCH014 36V 7.8Ah 10.5Ah 14Ah EBike Bater

Para ANCHEER AM1908 AM 001908 ADO A16 36V 8Ah Batería de bicicleta eléctrica plegable DCH014 36V 7.8Ah 10.5Ah 14Ah EBike Batería

376,16 € Sin impuestos

376,16 € Impuestos excluidos

El total del pedido incluye el IVA

2-4 dias hábiles

Envio gratis

Descripción
Ficha técnica

For ANCHEER AM1908 AM001908 ADO A16 36V 8Ah Folding Electric Bicycle Battery DCH014 36V 7.8Ah 10.5Ah 14Ah EBike Battery

Current link is for item DCH-014

If need others model DCH-006, DCH-009, DCH-003, DCH011, or other similar style batteries, please contact us.

★★Attention!!!

1. There are two versions of DCH-014 battery with different lengths, version A=length L325mm,

version B=length L395mm, please pay attention to the size when purchasing.

2. If your original battery is L325mm, then you can only choose L325mm;

If your original battery is L395mm, you can choose both two lengths

DCH-014 version A=length L325mm

DCH-014 version B=length L395mm

Battery details

Battery Specification:

DCH-014 version A=length L325mm
Battery Parameter	L325mm 36V 7.5Ah	L325mm 36V 9Ah	L325mm 36V 9.6Ah	L325mm 36V 10.2Ah	L325mm 36V 10.5Ah
Composed Type	10S 3P
Cells	Brand 2600mAh	Brand 3000mAh	Brand 3200mAh	Panasonic 3400mAh	SamsungLG 3500mAh
Battery Weight(appr.)	2kg
Battery Size(appr.)	4088325mm
Charging Time	3.5-4.5h	4.5-5h	4.5-5.5h	5-5.5h	5-6h

DCH-014 version B=length L395mm
Battery Parameter	L395mm 36V 10.4Ah	L395mm 36V 12Ah	L395mm 36V 12.8Ah	L395mm 36V 13.6Ah	L395mm 36V 14Ah
Composed Type	10S 4P
Cells	Brand 2600mAh	Brand 3000mAh	Brand 3200mAh	Panasonic 3400mAh	SamsungLG 3500mAh
Battery Weight(appr.)	2.5kg
Battery Size(appr.)	4088395mm
Charging Time	5-6h	6-7h	6.5-7h	7-8h	3A fast charger 5-6h

Common parameters：	DCH-014 L325mm/L395mm
Charging Cut-off Voltage	42V
Discharge Cut-off Voltage	30V
Charger	2A
BMS	20A
Fit for Motors	36V 200w 250w 350w 400w 450w 500w （36V 0-500W motor)
Discharge Temperature	-20~65°C
Charging Temperature	0~45°C
Cycle Life	80% Capacity after 1000 cycles
Warranty	1 Year

Discharge Connectors

Discharge Connector:
Below 7 kinds optional, you can leave "order note" to tell which kind do you need.

Without request, we will offer one kind of them by default, offer whole pairs to you.

"whole pairs, include one side for battery, another spare side for your controller", so that whatever what connectors on your controller side, you can use our whole pairs connectors to connect directly.

Packing List:

Battery * 1

Charger * 1

Warranty

Product: Battery

12 Months Quality warranty

1. We provide 1 year warranty for all electric bike batteries.
2. Any battery with quality problem in one month we can return the money after you provide the proof.
3. After one month we can send BMS or cells to you for repair, or you can send it back local warehouse or us to repair as well.
4. All our electric bicycle batteries with high quality cells and BMS, made by skilled craftsmanship and they will be 100% strictly several times tested before shipping.

Condition

The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time.

Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion.

Tips

Payment & Delivery

1. The payment isn't include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order.

2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address.
3. All batteries send by battery special channel, the tracking information will be updated once it finish customs clearance. Please kindly don't worry and help to wait more days if you can't track it.

Note

1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland)

2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules.

3. Japanese customers need to provide Japanese address and contact information

Feedback

Your satisfaction and positive feedback is very important for us.

It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services.

If you have any problems, don't hesitate to contact us, we will do our best to serve with you.

FAQ

Q: What type of this electric bike battery?

A: It is Li- ion battery,Chemical is Li(NiCoMn)O2.

Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells used on this electric bicycle battery?

A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.

Q: Do your e-bike battery come with charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Does your electric bicycle battery come with quality warranty?

A: Yes, we provide 1 year warranty for all electric bicycle batteries.

Q: What's your delivery time?

A: Electric Bike Battery will be sent out within 7 days after confirmed order, shipping will cost 3-15 working days,it depends on quantity and which battery you need.

Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacturer which produce all kind of high quality E-bike Lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.

Lithium battery features

Longer battery life, the life expectancy is two times that of lead-acid batteries.

Rechargeable and no memory effect.

The weight is more lighter.

Smaller dimensions and can be customized.

Safer and more environmentally friendly, No heavy metals and hazardous substances.

BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,

over-heat, short circuit .

Warnings

Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

Does not use or leave the battery near a heat source as fire or heater.

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

TYPE: Batería de litio
Origin: CN(Origen)
Warranty: 1 Year
Hign-concerned Chemical: Ninguno
Battery type: Built-in Folding E-Bike Battery
Capacity: 7.5-14Ah
10 - 20Ah
Brand: Acepower
Voltage: 36 V
36V optional
Certificate: CE UL RoHS UN38.3 MSDS
BMS: 20A
Cycle Life: 800~1000 cycles
Cells: Brand/ LG/ Panasonic 18650 3.7V Cells
Fit for Motors: 250W 300W 350W 400W 500W
