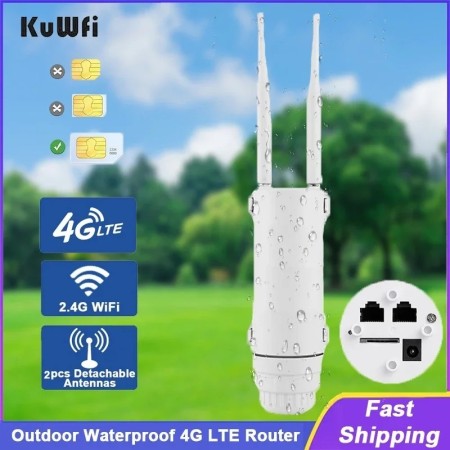

KuWFi-enrutador LTE para exteriores, 300Mbps, CAT4, 4G, inalámbrico, Wi-Fi, antena externa desmontable, puerto LAN WAN, compatible con 24V POE, 64 usuarios
FAQ:
Q1: How to provide network to other devices through LAN interface?
A1: Users need to log in to the WEB UI to switch WAN/LAN functions. As shown in the following picture.
Frequency Band:
EU Version:
4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)
Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.
LA Version:
Support Band: B1/B2/B5/B7/B8/B28/B66
Applicable to North and South Amercia countries,such as Mexico, Brazil, Venezuela, Chile, Peru, Colombia,
Bolivia.
This router is unlcoked. But different operators have different frequency bands in different countries.
If you don't know the 4G frequency band used in your country/region, please check on the following website:
Overview:
Outdoor 4G router designed for WIFI users to get access to internet via 3g/4g sim card. It is used to supply internet access to indoor &outdoor WiFi coverage and monitor camera project
Features:
CAT4 4G Router:
Once you have inserted the SIM card and configured the APN information correctly, the device will be able to access the internet.4G network with the fastest download speed of up to 150Mbps and upload speed of up to 50Mbps.
IP67 grade three-proof design:
It adopts three-proof design, and has good heat dissipation function, which can adapt to various thunderstorms, snow and other harsh weather.
Wired network, 4G wifi optional:
Whether it is 4G network or wired broadband, the router can connect to the network as needed, so that you can surf the Internet without worry and enjoy broadband life anytime, anywhere.
Dual antenna high speed:
2.4G Internal 5dBi x 2PCS,4G external 5dBi x 2PCS, Internal LTE diversity antenna. Wi-Fi Transfer rate:UP to 300Mbps. Support LED indicator.
Outdoor wifi distance :
10-100M (Outdoor accessibility),support max 64 wifi user at the same time.
Specification:
- Flash/RAM/:8/64M
- Wi-Fi:IEEE 802.11b/g/n
- Wi-Fi Transfer rate:UP to 150Mbps
- Encryption:Wi-Fi Protected Access (WPA/WPA2)2
- Customization:Smart system,high-level;Customization possibility
- LED:LED indicator
Interface type
Wan: 1 x 10/100 Mbps wan port(RJ45)
Lan: 1 x 10/100 Mbps Ethernet port(RJ45)
Antenna: 1*wifi antenna ,1*4G antenna
Power: POE, through RJ45 port
Reset: Restore the router to its original factory default setting
Speed(CAT4)
FDD - LTE Downlink:150Mbps, Uplink:50Mbps
TDD-LTE: Downlink:150Mbps, Uplink:50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA: 7.2Mbps(download speed)
UMTS:384Kbps (download speed/upload speed)
Package Included:
1x Outdoor 4G LTE Router
2x Antenna
1x 24V/0.5A POE Power Adapter
1x RJ45 Cable
1x User Manual
Wide Signal Coverage

Support Standard Sim Card, Plug and Play

Support Max.64 WiFi Users at the Same Time

Multi Protection, Design for Outdoor Usage

High Power Antenna

Support POE, Easy to Use with RJ45 Cable

Interfaces, Antennas and Indicators

Two Installation Steps

Size and Installation Display

Mesh WiFi Installation Example

Product Display from Different Angles


kuwfi/lte router/router/4g router/роутер/4g lte router/internet/5g sim router/roteador/keenetic hero 4g/outdoor wifi/wifi router/outdoor router/kuwfi 4g router/wifi range extender/4g outdoor router/4g lte модем/4g роутер/kuwfi 4g/4g роутер wifi с симкартой/router wifi/router sim card/4g wifi router with sim card slot/modem 5g wifi sim card/outdoor 4g router/4g sim router/lte 라우터/wifi repeater/роутер 4g/4g wifi routeur/modem 4g wifi sim card/4g router sim card/4g router with sim card slot/router 4g para tarjeta sim/sim router/wifi extender/роутер с сим картой 4g/router wifi sim card/wifi repeater outdoor/우터/internet rural/роутеры/4g wifi роутер/4g wifi роутер с sim картой/internet router/outdoor wifi router/4g router outdoor/lte 4g router/lte modem/router 5g sim card/routeur 4g carte sim/lte outdoor router/roteador wifi longo alcance/lte 4g modem/4g lte outdoor router/интернет центр/موزع انترنت/router 4g wifi/інтернет без світла/roteador potente longo alcance/cpf909/lte 4g outdoor/lte 4g wifi outdoor/4g lte открытый wifi роутер водонепроницаемый/4g sim card/4g sim mobile router/internet bonding/lte outdoor cat6/router zte desbloqueado/routeur 4g carte sim exterieur puissant/routeur 4g extérieur/wavlink 4g lte
- Producto químico muy preocupado
- Ninguno
- Tipo
- wireless
- Función
- Cortafuegos
- Nombre de la marca
- KuWFi
- Origen
- CN(Origen)
- Paquete
- Sí
- Uso
- Al aire libre
- Velocidad de transmisión Wi-Fi de 5 GHz
- Ninguno
- Estándar Wifi
- 802.11b
- Velocidad de transmisión Wi-Fi de 2.4 GHz
- 300 Mbps
- Frecuencia compatible con Wi-Fi
- 2,4 G
- Puertos WAN
- 1x10/100 Mbps
- Puertos LAN
- 1
- Normas y protocolos
- Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
- Velocidad máxima de transferencia de la conexión LAN
- 300 MB/s
- Con función de módem
- Si
- Velocidad de transferencia por cable
- 10 / 100 MB/s
- Compatibilidad WPS
- No
- Compatibilidad WDS
- No
- Número de interfaces USB
- Ninguno
- Velocidad de transmisión inalámbrica
- 300 millones
- Malla de soporte
- No compatible
- Frecuencia
- 2,4 gigahercios
- Tipo de Antena
- Fijo
- Usos recomendados
- Inicio
- Estándar de comunicación inalámbrica
- 802.11n
- Clase de banda de frecuencia
- Banda única
